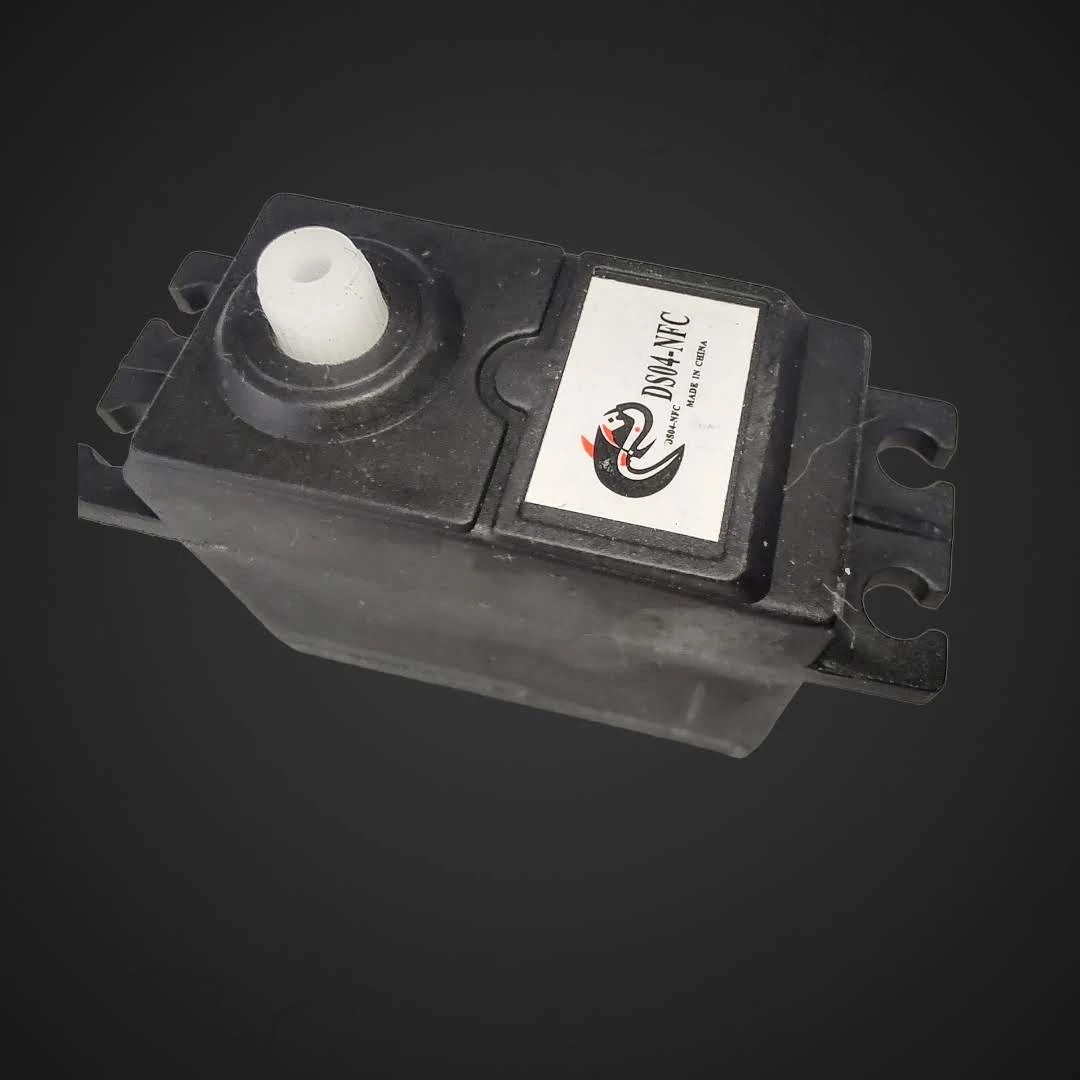

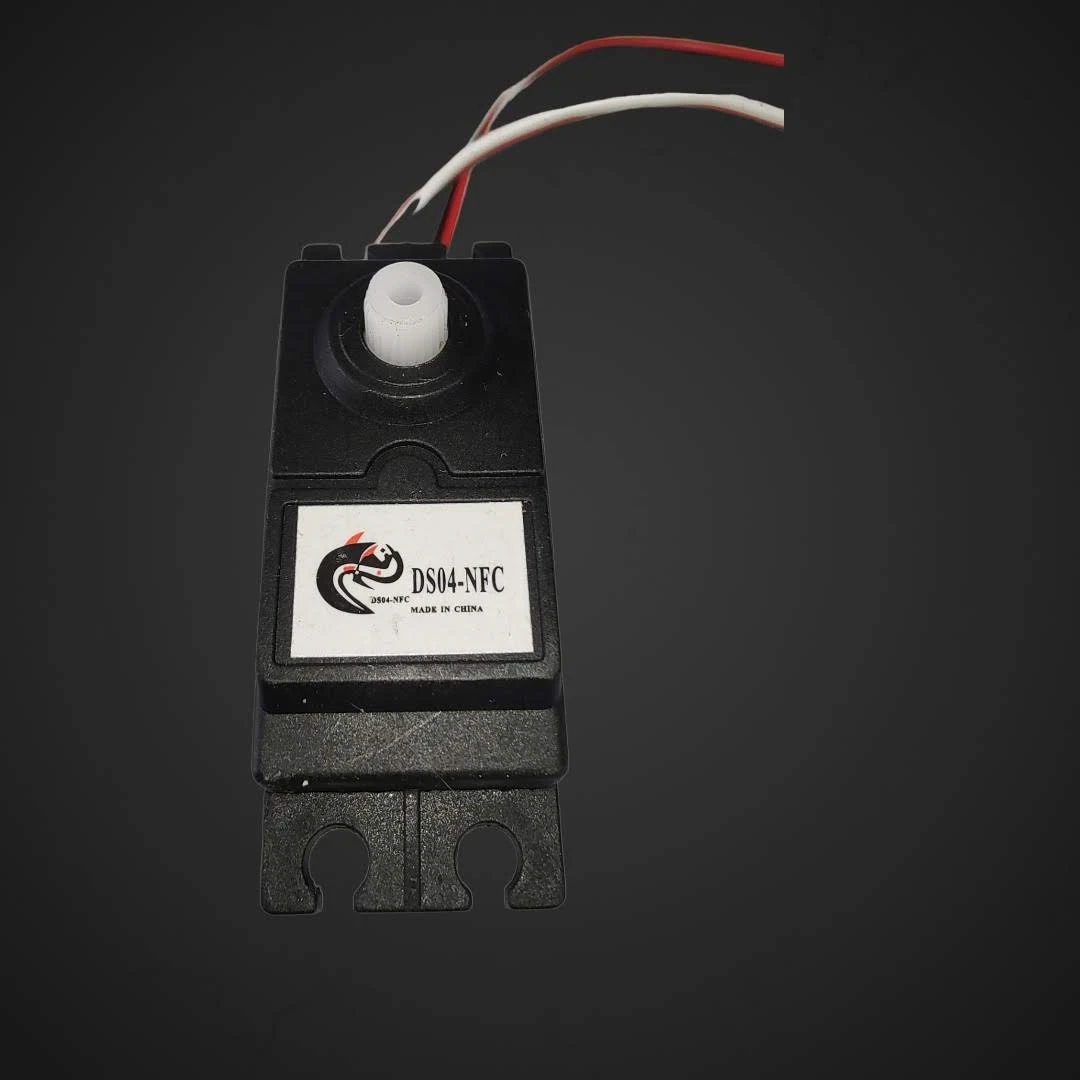

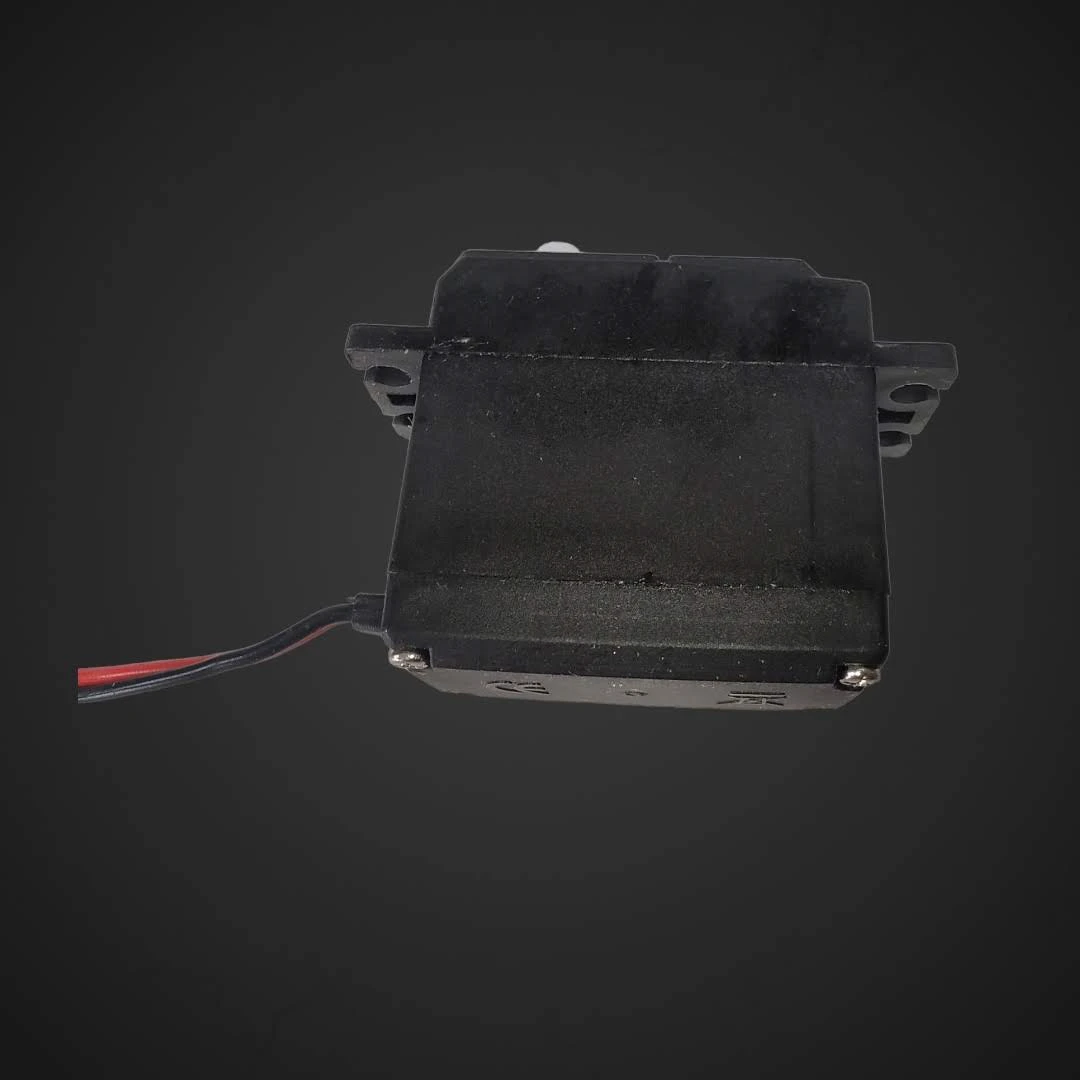

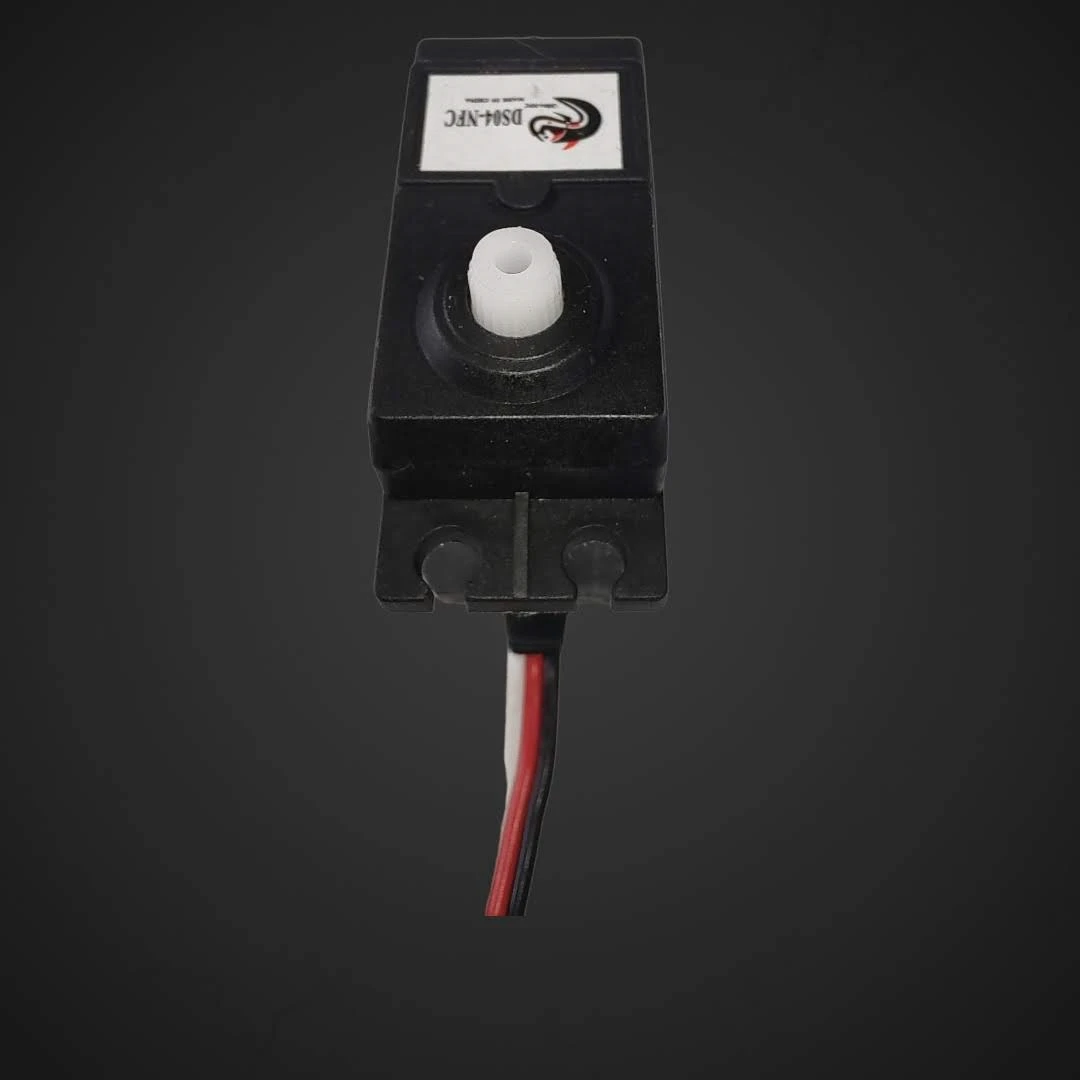

Servo Motor DS04 NFC kontinuirano vrtenje 45RPM
Model: DS04-NFC
Used for: Airplane / Cars / Robots
Weight: 38 g
Dimensions: 40.8 x 39.5 x 20 mm
Power: 5.5 kg / cm (4.8 V)
Speed: 0.22 sec / 60 °C (4.8 V)
Voltage: 4.8 V to 6 V
Operating Temperature: 0 °C to 60 °C
Current: <1000 mA
The signal terminal needs to be input with one 50 HZ square wave, then the duration of high level pulse, which is used to control signal cycle, can control speed and forward/backward rotation as well as stalling. The duration of high level corresponds to a speed. When high level is 1ms - 1.5ms, servo rotates forward (the rotation speed is the fastest when it is 1ms, the higher the lower, servo will stop rotating when it reaches 1.5ms). When high level is 1.5 - 2ms, the servo rotates backward. (The servo stops rotating when reaching 1.5ms, when the duration is closer to 2ms, the closer, the faster. The backward rotation speed, the fastest when reaching 2ms)

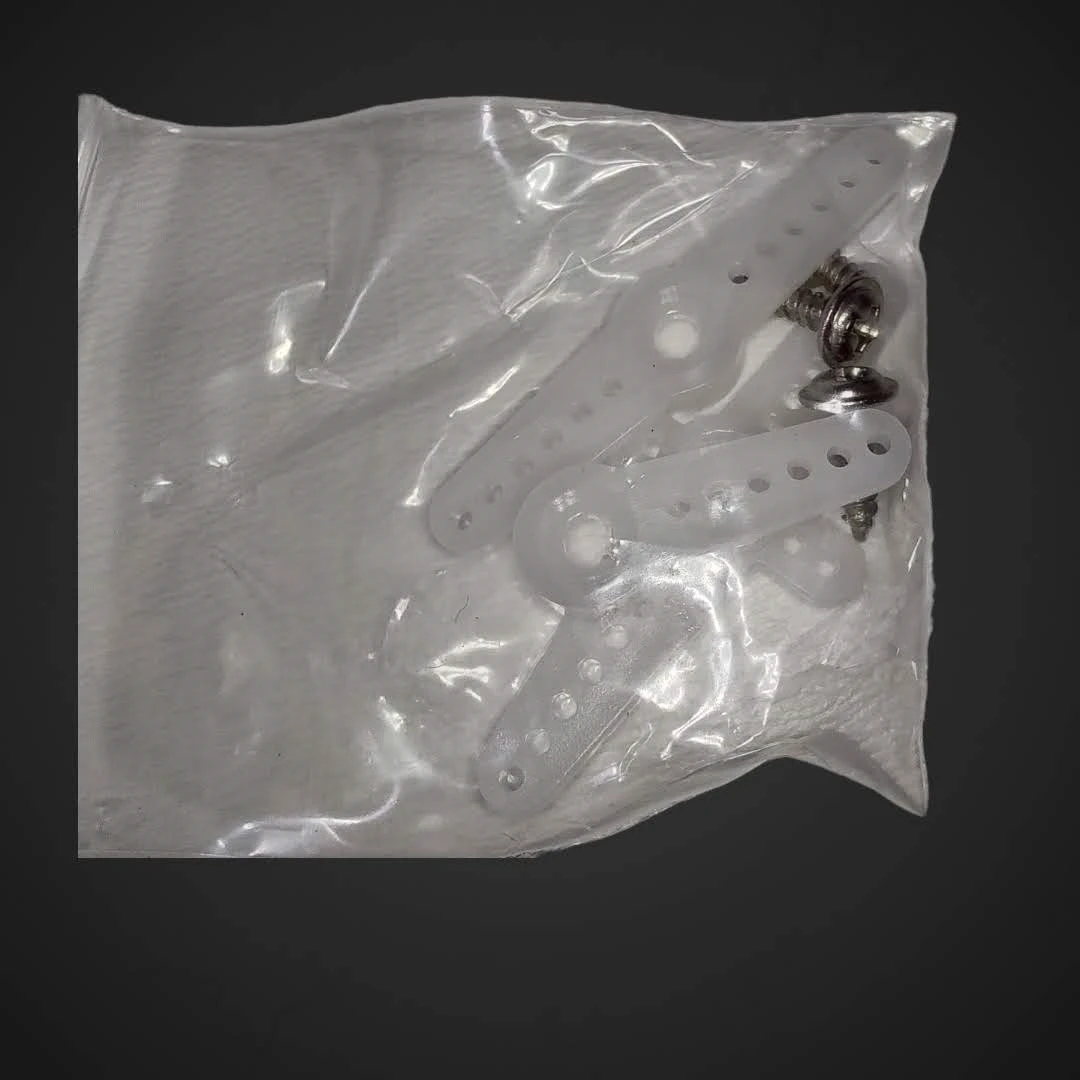

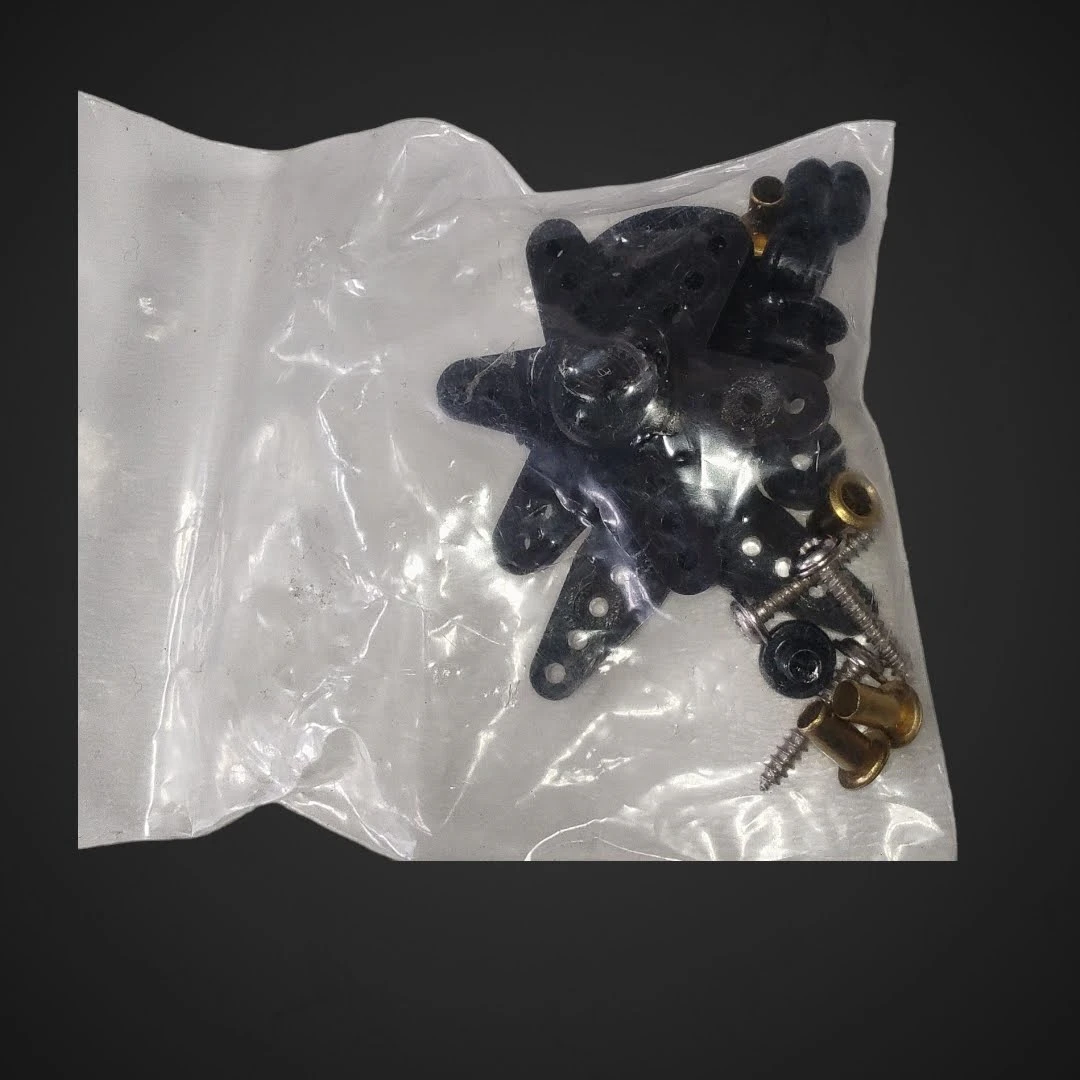

Contents:
1 x 360 Degree Continuous Rotation Servo Motor
4 x Rocker Arm
4 x Rocker Arm Cap
4 x Rat-tail Screw
4 x Flat Tail Screw
1 x Black Flush Tail Screw
Used for: Airplane / Cars / Robots
Weight: 38 g
Dimensions: 40.8 x 39.5 x 20 mm
Power: 5.5 kg / cm (4.8 V)
Speed: 0.22 sec / 60 °C (4.8 V)
Voltage: 4.8 V to 6 V
Operating Temperature: 0 °C to 60 °C
Current: <1000 mA
The signal terminal needs to be input with one 50 HZ square wave, then the duration of high level pulse, which is used to control signal cycle, can control speed and forward/backward rotation as well as stalling. The duration of high level corresponds to a speed. When high level is 1ms - 1.5ms, servo rotates forward (the rotation speed is the fastest when it is 1ms, the higher the lower, servo will stop rotating when it reaches 1.5ms). When high level is 1.5 - 2ms, the servo rotates backward. (The servo stops rotating when reaching 1.5ms, when the duration is closer to 2ms, the closer, the faster. The backward rotation speed, the fastest when reaching 2ms)
Contents:
1 x 360 Degree Continuous Rotation Servo Motor
4 x Rocker Arm
4 x Rocker Arm Cap
4 x Rat-tail Screw
4 x Flat Tail Screw
1 x Black Flush Tail Screw
